CEF vervang impeller Jabsco.

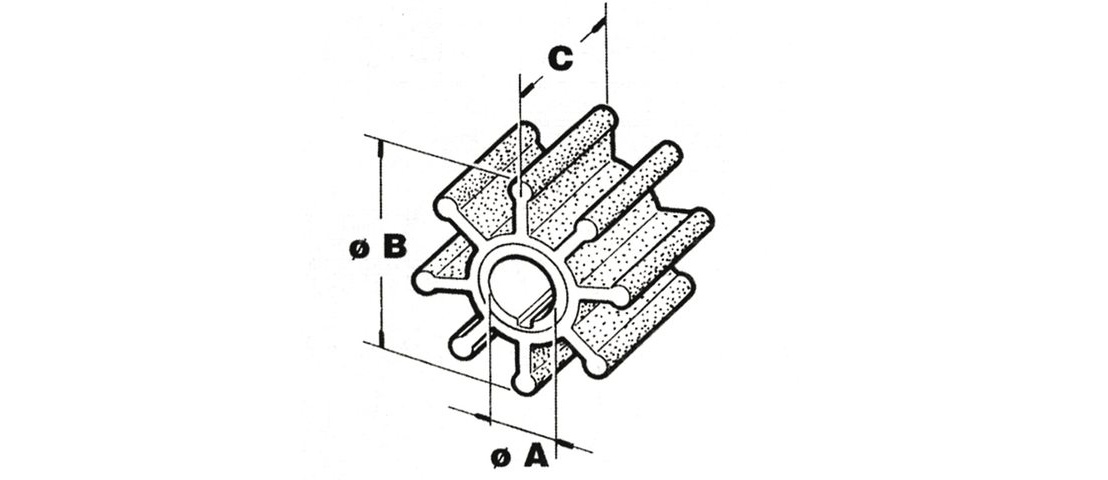

| Cef impeller | Origineel Nr | Type asgat | Bladen | ØA mm | ØB mm | C mm | Meegeleverd | |
|---|---|---|---|---|---|---|---|---|
| CEF500107 | 1210-0001 | Spline Drive | 12 | 14.29 | 57 | 31.6 | pakking + kap | |
| CEF500124 | 13554-0001 | Spline Drive | 12 | 14.29 | 57 | 48.2 | ||
| CEF500130 | 14609-0001 | Single Flat | 6 | 8 | 31.75 | 12 | ||
| CEF500130 | 14787-0001 | Single Flat | 6 | 8 | 31.75 | 12 | ||
| CEF500187 | 17018-0001 | 9 | 14.29 | 65.2 | 75.65 | |||
| CEF500177 | 17018-0001B | Spline Drive | 8 | 14.29 | 65.2 | 75.65 | pakking + kap | |
| CEF500152 | 17370-0001 | Double Flat | 12 | 20.2 | 95 | 88.5 | ||
| CEF500135 | 17935-0001 | Spline Drive | 12 | 22.5 | 95 | 63.1 | kap | |
| CEF500145 | 17936-0001 | Spline Drive | 12 | 22.5 | 95 | 88.5 | pakking + kap | |
| CEF500114 | 17937-0001 | Spline Drive | 10 | 14.29 | 65 | 50.1 | kap | |
| CEF500167 | 18327-0001 | Key Drive | 12 | 16 | 65 | 51.2 | pakking | |
| CEF500146 | 18653-0001 | Pin Drive | 10 | 12.17 | 51.8 | 22 | bout | |
| CEF500133 | 18777-0001 | Spline Drive | 10 | 14.29 | 57.18 | 50.25 | pakking | |
| CEF500103 | 18838-0001 | Key Drive | 12 | 15.9 | 62 | 31.7 | pakking + kap | |
| CEF500120 | 18948-0001 | Key Drive | 12 | 15.9 | 65.2 | 41.3 | pakking + kap | |
| CEF500164 | 18958-0001 | Key Drive | 12 | 20.1 | 84 | 73.5 | pakking + kap | |
| CEF500113 | 21414-0001 | Single Flat | 6 | 8 | 31.3 | 11.9 | ||
| CEF500145 | 21676-0001 | Spline Drive | 12 | 22.5 | 95 | 88.5 | pakking + kap | |
| CEF500104 | 22120-0001 | Spline Drive | 12 | 14.29 | 57 | 50.2 | pakking + kap | |
| CEF500121 | 22405-0001 | Pin Drive | 6 | 12 | 39.6 | 19.2 | pakking + bout | |
| CEF500129 | 22799-0001 | Key Drive | 6 | 12.75 | 50.8 | 22.1 | ||
| CEF500107 | 3085-0001 | Spline Drive | 12 | 14.29 | 57 | 31.6 | pakking + kap | |
| CEF500161 | 31130-0061 | Spline Drive | 10 | 14.29 | 65 | 68.2 | ||
| CEF500100 | 4528-0001 | Pin Drive | 6 | 9.54 | 39.6 | 18.94 | pakking + bout | |
| CEF500108 | 4568-0001 | Key Drive | 12 | 15.93 | 57 | 31.65 | key, pakking + kap | |
| CEF500102 | 4598-0001 | Key Drive | 8 | 15.9 | 65 | 50.2 | kap | |
| CEF500102 | 4599-0101 | Key Drive | 8 | 15.9 | 65 | 50.2 | kap | |
| CEF500138 | 6303-0001 | Single Flat | 6 | 7.31 | 51.3 | 22 | ||
| CEF500101 | 653-0001 | Pin Drive | 6 | 12.17 | 50.8 | 22.1 | pakking + bout | |
| CEF500116 | 673-0001 | Pin Drive | 6 | 12.66 | 50.8 | 22.1 | pakking + bout | |
| CEF500115 | 6760-0001 | Spline Drive | 9 | 22.5 | 95 | 88.5 | kap | |
| CEF500110 | 7273-0001 | Single Flat | 6 | 7.31 | 50.8 | 22.1 | ||
| CEF500105 | 836-0001 | Spline Drive | 9 | 22.5 | 96 | 63.1 | pakking + kap | |
| CEF500106 | 920-0001 | Spline Drive | 8 | 14.29 | 65 | 50.2 | pakking + kap |
